Capsu-TRAY manual capsule holding tray by Capsuline
Find out which capsule size suits your needs!
Our online calculator will allow you to choose the right capsule size based on your unique ingredient type and quantity.
Capsule Size Chart
Wondering what size capsule you need to purchase for encapsulating your supplement dosage? Don’t worry, you're not alone. We are frequently asked this question and have put together this sizing chart for your convenience. After all, no one wants to buy the wrong size capsules and have to return them. So which empty capsules do you need to buy, size 0, size 000, size 1? Check out our helpful size chart to find out.
| Empty Capsule Size | ||||||||||
| Capsule Size | 000 | 00E | 00 | 0E | 0 | 1 | 2 | 3 | 4 | 5 |
| Empty Capsule Weight (Gelatin) | ||||||||||
| Average Weight (mg) | 158 | 143 | 123 | 107 | 99 | 76 | 61 | 48 | 38 | 28 |
| Tolerance | ±10 | ±10 | ±7 | ±7 | ±6 | ±5 | ±4 | ±3 | ±3 | ±2 |
| Empty Capsule Weight (Vegetarian) | ||||||||||
| Average Weight (mg) | 163 | 152 | 136 | 107 | 105 | 79 | 63 | 50 | 40 | 30 |
| Tolerance | ±10 | ±10 | ±7 | ±7 | ±6 | ±5 | ±4 | ±3 | ±3 | ±2 |
| Empty Capsule Volume Capacity (ml) | ||||||||||
| Capacity | 1.37 | 1.00 | 0.90 | 0.78 | 0.68 | 0.48 | 0.36 | 0.27 | 0.20 | 0.13 |
| Empty Capsule Weight Capacity by Formulation Density (mg) | ||||||||||
| Formulation Density | ||||||||||
| 0.6 g/ml | 822 | 600 | 540 | 468 | 408 | 288 | 216 | 162 | 120 | 78 |
| 0.8 g/ml | 1096 | 800 | 720 | 624 | 544 | 384 | 288 | 216 | 160 | 104 |
| 1.0 g/ml | 1370 | 1000 | 900 | 780 | 680 | 480 | 360 | 270 | 200 | 130 |
| 1.2 g/ml | 1644 | 1200 | 1080 | 936 | 816 | 576 | 432 | 324 | 240 | 156 |
| Empty Capsule Overall Closed Length | ||||||||||
| (mm) | 26.1 | 25.3 | 23.4 | 23.5 | 21.6 | 19.4 | 17.6 | 15.7 | 14.3 | 11.1 |
| Tolerance (mm) | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.4 |
| inches | 1.029 | 0.996 | 0.921 | 0.909 | 0.85 | 0.764 | 0.693 | 0.618 | 0.563 | 0.437 |
| Tolerance inches | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.016 |
| Empty Capsule Individual Lengths (Cap) | ||||||||||
| Cap (mm) | 12.95 | 12.95 | 11.80 | 11.68 | 10.85 | 9.85 | 8.80 | 8.00 | 7.20 | 6.20 |
| Tolerance | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.29 |
| Cap (inches) | 0.510 | 0.510 | 0.464 | 0.460 | 0.427 | 0.388 | 0.346 | 0.315 | 0.283 | 0.244 |
| Tolerance | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.012 |
| Empty Capsule Individual Lengths (Body) | ||||||||||
| Body (mm) | 22.20 | 22.20 | 20.22 | 20.19 | 18.35 | 16.40 | 15.15 | 13.45 | 12.10 | 9.30 |
| Tolerance | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.29 |
| Body (inches) | 0.879 | 0.879 | 0.796 | 0.795 | 0.722 | 0.645 | 0.596 | 0.529 | 0.476 | 0.366 |
| Tolerance | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.012 |
| Empty Capsule External Diameter | ||||||||||
| Cap (mm) | 9.91 | 8.58 | 8.56 | 7.65 | 7.64 | 6.96 | 6.39 | 5.85 | 5.33 | 4.91 |
| Cap (inches) | 0.390 | 0.338 | 0.337 | 0.301 | 0.301 | 0.274 | 0.252 | 0.230 | 0.210 | 0.193 |
| Body (mm) | 9.55 | 8.25 | 8.23 | 7.36 | 7.35 | 6.63 | 6.12 | 5.6 | 5.08 | 4.68 |
| Body (inches) | 0.375 | 0.376 | 0.322 | 0.289 | 0.289 | 0.290 | 0.240 | 0.220 | 0.200 | 0.184 |
| Empty Capsule Quantity Per Case | ||||||||||
| Capsules Per Box | 50,000 | 65,000 | 75,000 | 90,000 | 100,000 | 125,000 | 175,000 | 200,000 | 250,000 | 350,000 |
How to read Capsuline’s Empty Capsule Size Chart
- Capsule Weight - The total weight of the capsule, measured in milligrams (mg).
- Volume Capacity - The total volume of the inside of the capsule in milliliters (ml) - Note 1 milliliter(ml) = 1 gram(g).
- Weight Capacity by Formulation - The total weight capacity of the capsule measured in milligrams(mg) depending on the density of your formulation.
- Overall Closed Length - The total length of the capsule when it is fully closed and locked.
- Individual Lengths - Measures both the body and the cap of the capsule’s in both millimeters and inches. The Body is the longer part of the capsule that is filled with your material. The Cap is shorter than the body and is placed over the body to form a complete capsule.
- External Diameter - The total diameter of both the body and the cap.
- Tolerance - The allowable variance in dimensions that is allowed prior to a product being considered flawed and/or unfit for sale.
Still have questions? Visit the Empty Capsules Guide
BEST SELLERS
- In stock, ready to ship

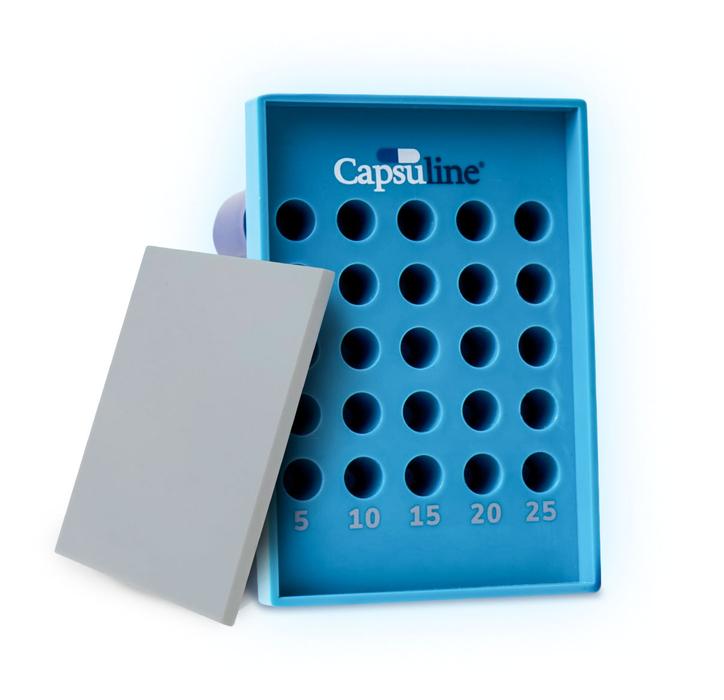

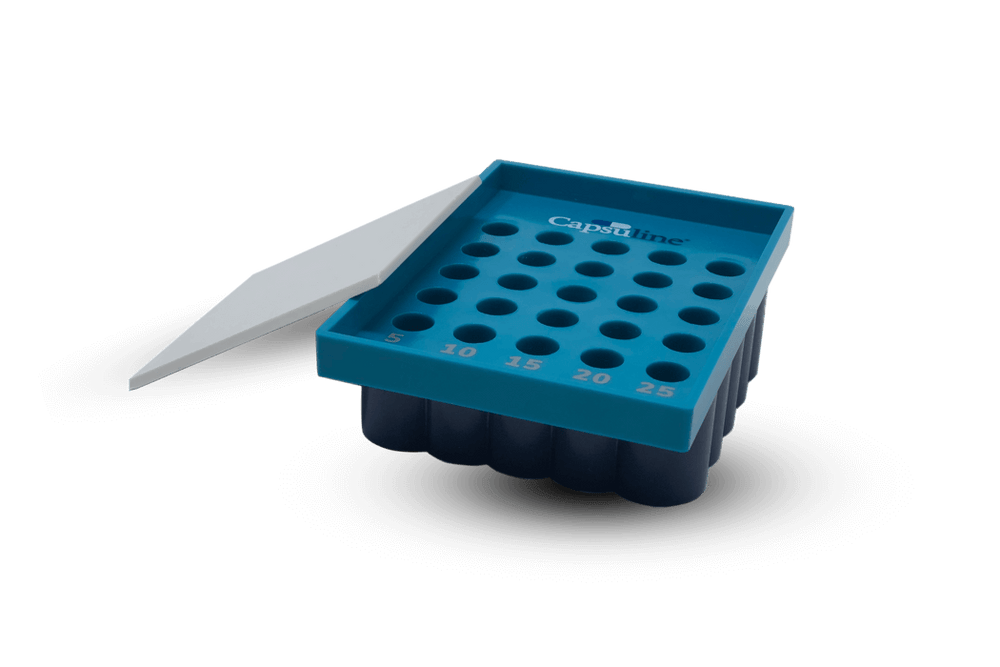

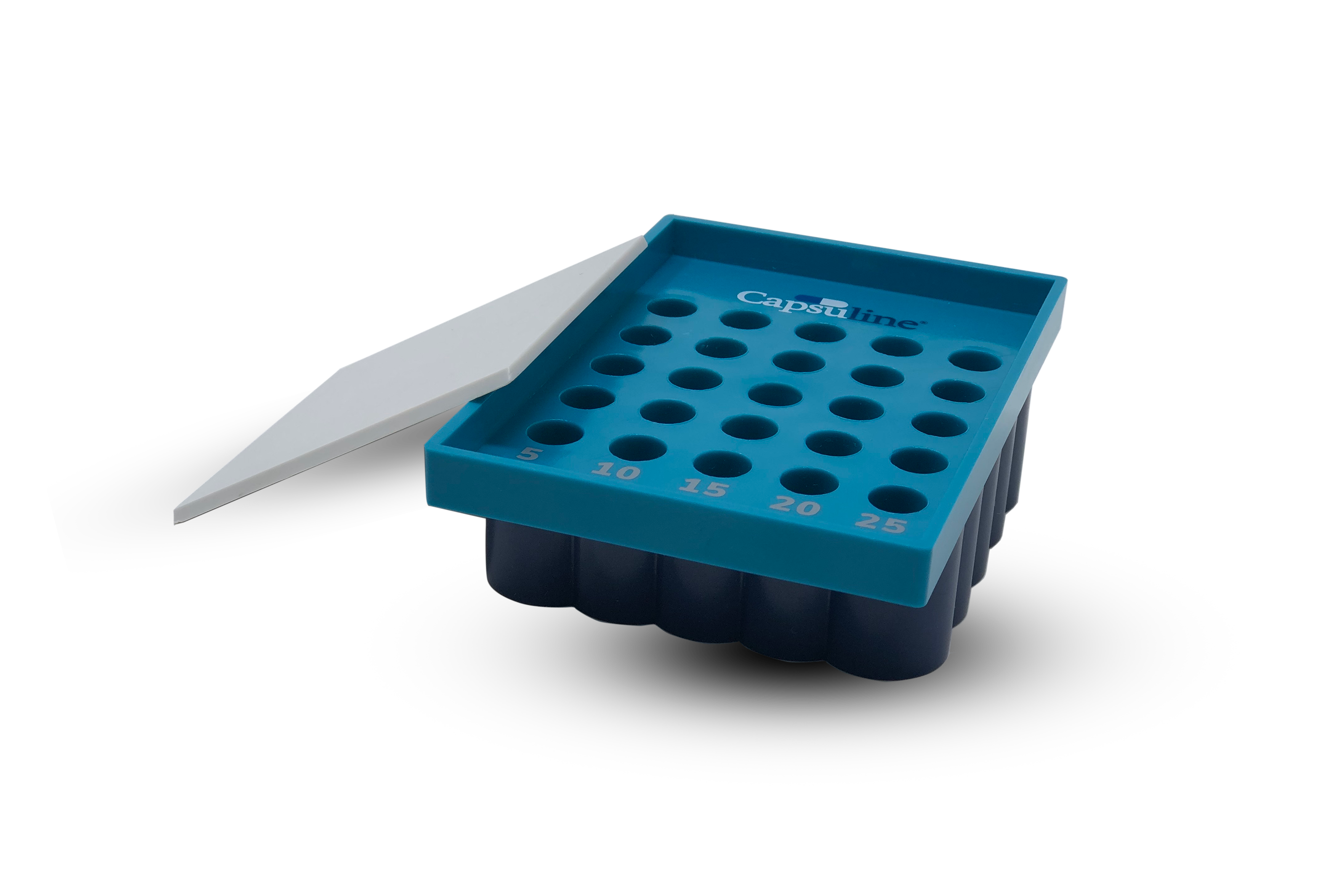

This compact capsule filling tray by Capsuline is designed to manually fill your empty capsules with various supplement ingredients. Compact, innovative and easy-to-use, this capsule filling tray will allow you to save time and encapsulate your own supplements on the go like a Pro!
Nonrefundable item once opened or used.
A tamper sticker will determine whether or not the unit was opened or used, and the unit will become nonrefundable.
Rectangular Holding Tray 100% food & dishwasher safe
Special Characteristics
3 Piece Capsule Filling Tray includes:
